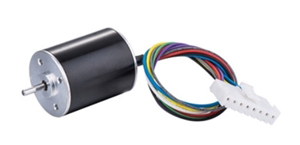

15000 RPM 24V High Speed BLDC Motor
15000 RPM High Speed BLDC Motor Specifications
15000 RPM High Speed BLDC Motor Functions
1. Variable load application area
Brushless DC motors can be used with variable load machines. It is mainly suitable for facilities with a certain speed range. Generally, this type of operation has higher requirements on the dynamic response time characteristics of the machine. For example, refrigerators, washing machines, air conditioners, etc. in daily household appliances belong to such categories. In addition, engine equipment control, electric controllers, and oil pump control in the automotive field are also in the category of variable loads, but the system cost of its application in the field of variable load will be higher.
2. Positioning application field
Brushless DC motors can also be used in the field of positioning. For most industrial control and automatic control applications, this type of application often requires energy delivery, so there are special requirements for dynamic response and torque. The requirements for the controller are also higher. Optoelectronics and some synchronization equipment may be used for speed measurement. Process control, logistics control and machine control are all part of the positioning application.
3. Continuous load application field
Brushless DC motors are suitable for machines that can sustain loads. Especially for equipment with special requirements for speed, such as electric fans, hair dryers, agricultural pumps, etc., which require speed but do not require too precise, BLDC motor can be used. Such applications are less expensive and mostly open loop control.
Model: ATOWS3240-150
Type: High Speed Brushless DC Motor
Weight: 108g
Size: D:32mm, L:40mm
Number of Phase: 3 phase
Rated Power: 37W
Rated Voltage: 24V
Rated Current: 1.68A
Noload Current: 0.22A
Rated Speed: 11750 rpm
Noload Speed: 15000rpm
Rated Torque: 23.4 mN.m
Construction: Permanent Magnet
Bearing: NMB Ball Bearing
Efficiency: 90%
Motor Housing: Stainless steel
Insulation Class: Class B
Usage: Boat, Car, Electric Bicycle, Home Appliance, Industrial Equiment
15000 RPM High Speed BLDC Motor Functions
- Speed regulation: It can change speed by 0-5v voltage and PWM two ways.
- Positive and negative reversal function: (green line) The positive and negative reversal line is connected with GND to change the motor from counterclockwise to clockwise rotation; after the reversing line is disconnected from GND, the motor returns to counterclockwise operation.
- Speed pulse output: (white line) can calculate the current actual motor speed based on the tested pulse frequency.
- Enable function: The enable line (purple line) is connected to GND to stop the motor naturally. The enable line is disconnected from the GND and the motor continues to run.
ATO small high speed brushless DC motors are widely used in various industries, such as machinery, electronics, automotive, automated production and aviation, due to their high speed operation, excellent quality and good braking performance. In general, there are three main application areas for brushless DC motors:
1. Variable load application area
Brushless DC motors can be used with variable load machines. It is mainly suitable for facilities with a certain speed range. Generally, this type of operation has higher requirements on the dynamic response time characteristics of the machine. For example, refrigerators, washing machines, air conditioners, etc. in daily household appliances belong to such categories. In addition, engine equipment control, electric controllers, and oil pump control in the automotive field are also in the category of variable loads, but the system cost of its application in the field of variable load will be higher.
2. Positioning application field
Brushless DC motors can also be used in the field of positioning. For most industrial control and automatic control applications, this type of application often requires energy delivery, so there are special requirements for dynamic response and torque. The requirements for the controller are also higher. Optoelectronics and some synchronization equipment may be used for speed measurement. Process control, logistics control and machine control are all part of the positioning application.
3. Continuous load application field
Brushless DC motors are suitable for machines that can sustain loads. Especially for equipment with special requirements for speed, such as electric fans, hair dryers, agricultural pumps, etc., which require speed but do not require too precise, BLDC motor can be used. Such applications are less expensive and mostly open loop control.
